Overview
You need help in sticky situations.

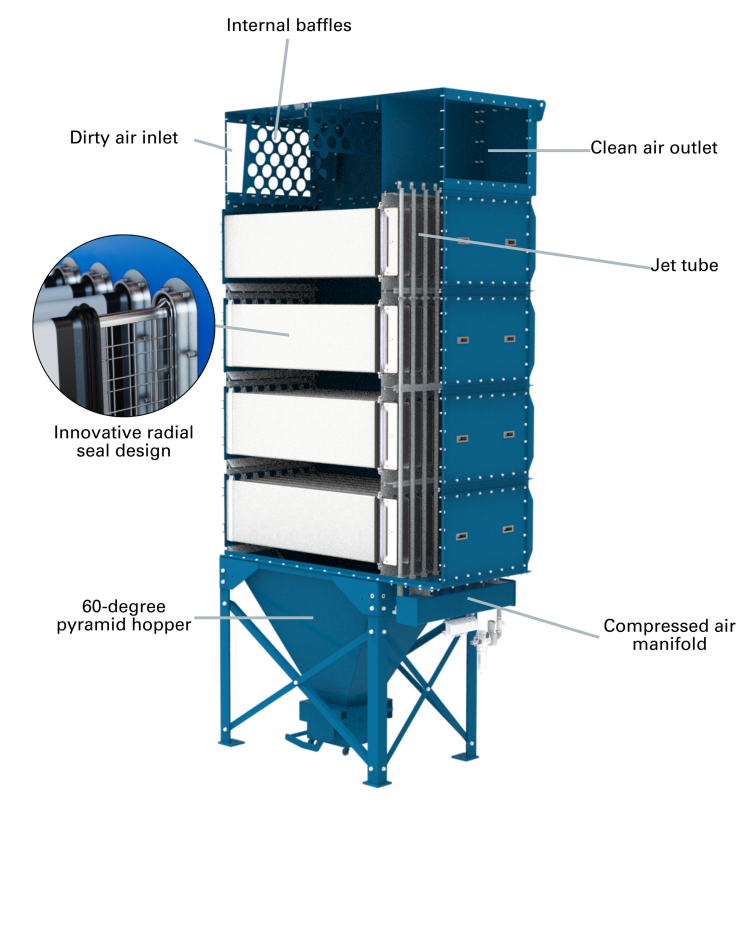

The Donaldson Dalamatic® G2 delivers state-of-the-art technology to help you control challenging and sticky dust. As experts in innovative dust control solutions, Donaldson went the extra mile in its design of the Dalamatic G2 to give you:

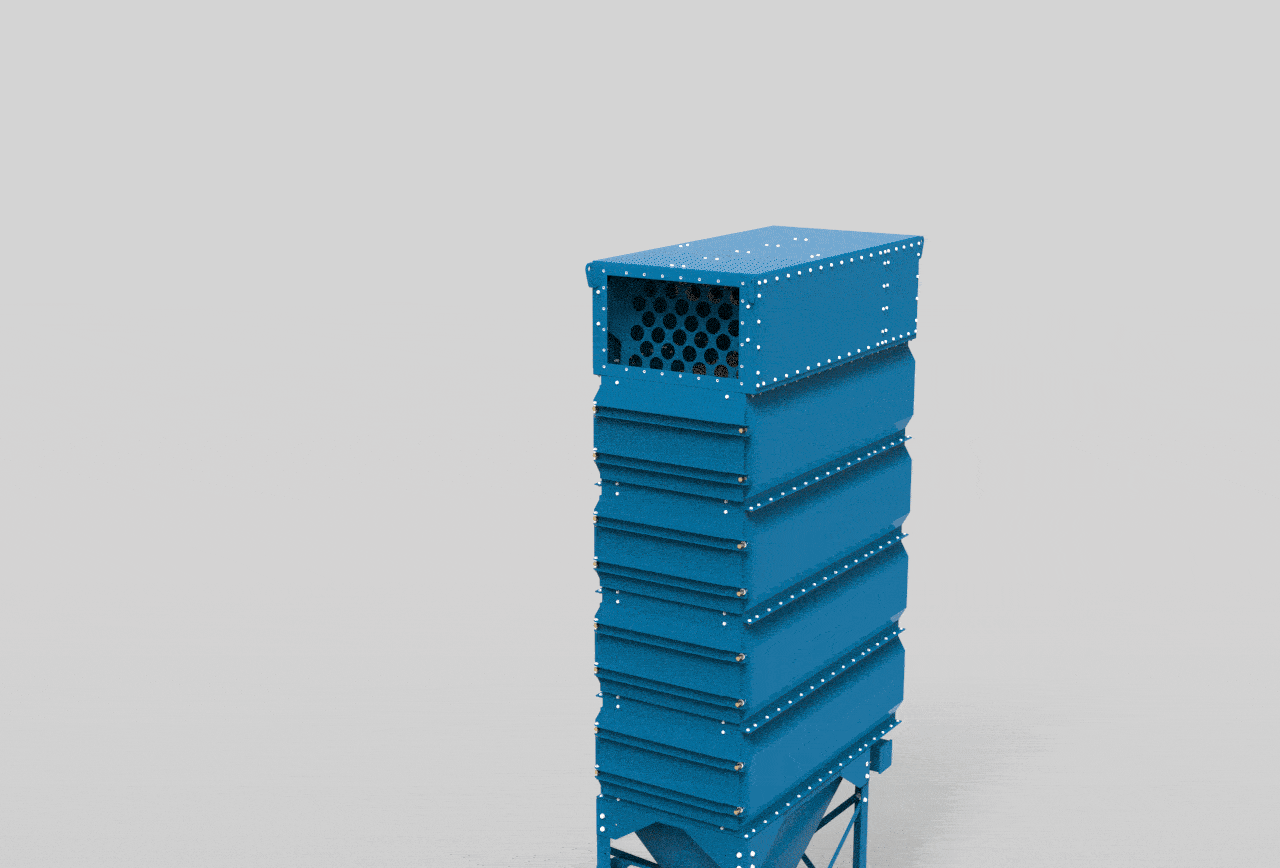

Modular Design — Pre-assembled modular units with installed bags for easy and flexible installation. Each symmetric module stacks seamlessly in any space. Customizable options allow you to tailor the system to your needs, with a design that supports future expansion and modifications.
Simplified Maintenance — With easy-open hinged doors and access from the production (or dirty-air) side. The cage stays in the collector during filter changeouts, making replacement easier and lighter. And, compared to earlier models, filter changeout times are reduced by up to 75% with 20% fewer filters to replace.
Lower Total Cost of Ownership — The Dalamatic G2 keeps total cost of ownership low through reduced maintenance costs and fewer filters to buy over the life of the collector.
Smart Collector — Equipped with iCue™ Connected Filtration Technology, your Smart Collector monitors your equipment and provides operational insights through automated alerts and a dashboard that’s accessible from your computer or smart devices.

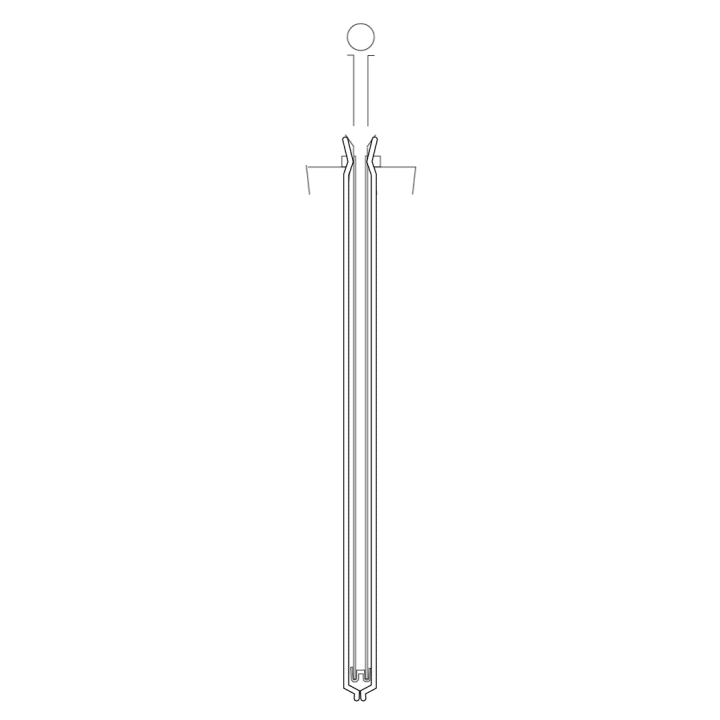

Radial Seal Technology Reduces Changeout Time
The Dalamatic G2 features a revolutionary Radial Seal filter design and fixed cages, which reduce the number of steps required in a filter change from 10 to 5. That reduces the time for filter changeouts by up to 75% compared to earlier designs.

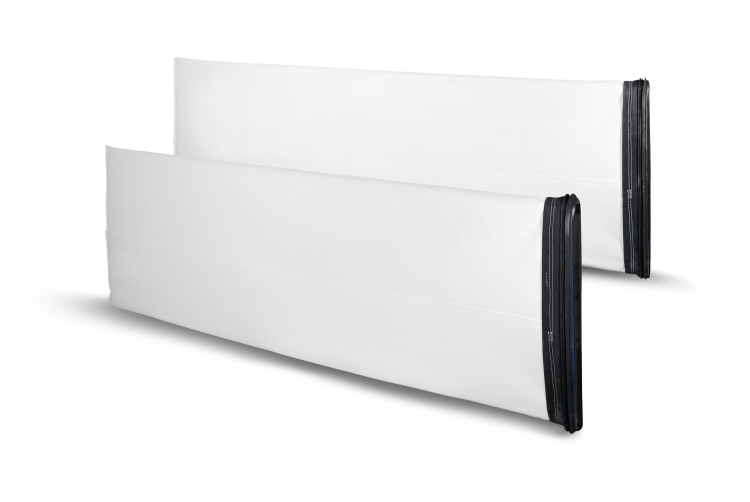

Unique Filter Bag Improves Efficiency
The Dalamatic G2 uses patented Dura-Life™ bag filters in a unique envelope shape that provides greater movement of the bag to dislodge challenging dust cakes. With better surface loading, Dura-Life bags provide improved pulse cleaning and a lower pressure drop, which results in extended bag life, less maintenance time and cost, energy savings and greater filtration efficiency. Dura-Life Filter Bags provide twice the life of standard 16oz. polyester bags.
Applications
- Minerals
- Gypsum
- Cement
- Sand
- Paper
- Grain
- Cattle Feed
- Rice
- Wheat
- Pharma
- Wood
- Food
Features
| Unit Options | Optional |
|---|---|
| Optional Execution for outside installation |  |
| Variable hopper clearance | |
| Full range of dust disposal systems | |
| Earthing | |
| Vibrator | |
| Sprinkler | |
| Bin balance pipe kit | |
| Oil/water separator | |
| Full range of fan sets and ducting | |
| Insulation | |
| DFS Feeder for the absorption of oily substances | |
| Platform | |
| Inline Cyclone | |
| iCue™ Connected Filtration Technology | |
| Filter Bag Options |
Standard | Optional |
|---|---|---|
| Duralife | |
|
| Duralife Oleophobic | |
|
| Duralife AntiStatic | |
|
| Duralife Oleophobic AntiStatic | |
|
| Tetratex | |
|
| Tetratex AntiStatic | |
|
| Tetratex AntiStatic Contact | |
|
| Tetratex Contact | |
Resources
Videos
Donaldson Dalamatic® G2 Dust Collector
Meet the Donaldson Dalamatic G2: the pinnacle of performance baghouses specifically designed to handle the challenging dust.
Understanding Dust Contaminants
At the end of this video, you will have a better understanding of the main types of industrial dust and how to identify them. That's important, because knowing what kind of dust you're dealing with is the first step in designing an effective dust collection system.
Donaldson Dura-Life Bag Filters
Donaldson Torit's Dura-Life filtration technology exceeds that of conventional polyester and other bag filters.These bags can offer twice the life of other bags, and are offered for all popular brands of collectors. Improved efficiency offers greater performance, and reduces maintenance and energy costs.
