Overview
The Donaldson Torit® IRD dust collector is designed to use a downflow air pattern and gravity to clean dust trapped on the inner surface of the filter bags and to force the dust into the disposal bags at the bottom of the collector. This unique design means that expensive compressed air is not needed in the operation of the IRD dust collector.
Features
- Complete dust collection package includes fan, fan motor, push-button fan starter, bag filters and clear plastic dust disposal bags
- Fan provides high vacuum pressure with low operating sound levels for cleaner workplaces and lower sound levels
- Down flow air pattern allows airflow and gravity to move filtered dust to collection receptacles for longer bag filter life and reduced pressure drop
- Adjustable airflow baffles equalize dust dispersion to all collection receptacles, which minimizes emptying cycles
- Cageless filters and tool-free filter replacement reduce maintenance time.
- Filtered air returning to interior workspace reduces HVAC costs
- Dura-Life™ "Twice the Life" bag filters provide longer bag life, which reduces maintenance costs and lowers pressure drop
- Optional automatic shaker is available for better collector performance
- Fans with higher static pressure are available for more demanding applications

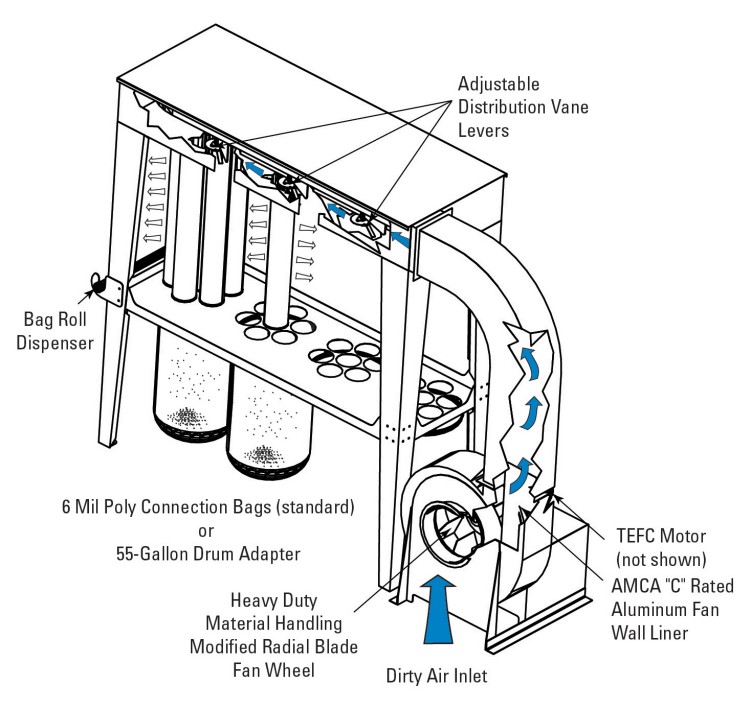

Operational Explanation
Dust laden air is pushed into the dirty air plenum by a high volume, high pressure heavy duty material handling fan. The dusty air is evenly distributed down inside of the high flow polyester bags which capture the dust and allow clean air to pass back into the work environment.
Dust captured inside the bag is carried down into the dust receptacles at the bottom of the collector via gravity and airflow. An optional automatic shaker is available for even better collector performance.
Features
| Collector Design | Standard | Optional |
|---|---|---|
| Down Flow Design |  |
|
| Airflow Balancing Baffles and Levers | |
|
| Cageless Filter Design | |
|
| Tool-Free Filter Removal | |
|
| Minimum 14-Gauge Carbon Steel Construction | |
|
| 12-Gauge Carbon Steel Tubesheet | |
|
| Integral Dust Disposal Bag Storage Rack | |
|
| Direct Drive High Output Material Handling Fan | |
|
| AMCA C Rated Aluminum Fan Wall Liner | |
|
| 230/460, 3 Phase TEFC NEMA Premium* Efficient Motor | |
|
| Filter-to-Fan Transition | |
|
| Filter-to-Fan Transition | |
|
| Exterior Weather Kit | |
| Bag Filters | Standard | Optional |
|---|---|---|
| 177.8 mm / 7 in. Diameter x 1,524 mm / 60 in. Long Dura-Life Polyester Bag Filters | |
| Paint System | Standard | Optional |
|---|---|---|
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | |
|
| Standard Colors: Torit Blue or Storm White | |
| Dust Collection Receptacles | Standard | Optional |
|---|---|---|
| 50 - 6 Mil Clear Plastic Disposal Bags with 10 Cubic Foot Capacity | |
|
| Quick Opening Cam Clamps for Disposal Bag Change | |
|
| 208.2 L / 55 gal Drum Adapters | |
| Support Structure | Standard | Optional |
|---|---|---|
| 10-Gauge Carbon Steel Construction | |
| Electrical, Controls, & Enclosures | Standard | Optional |
|---|---|---|
| Push Button Magnetic Fan Starter in NEMA 1 Enclosure | |
|
Shaker Controls in NEMA 4 Enclosure
|
|
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty | |
