Overview

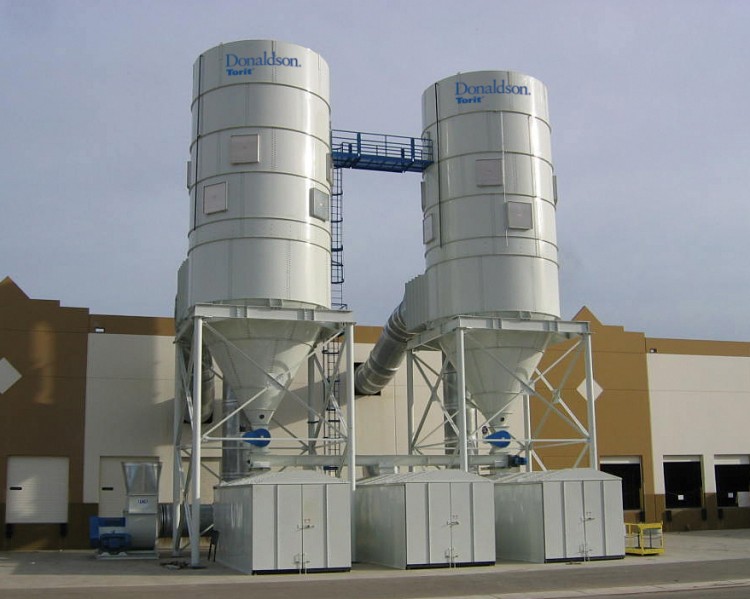

The Donaldson Torit® LP Baghouse dust collector provides superior bag filter cleaning performance in a reverse air design. This unique system design reduces your maintenance cost and downtime.
The LP advantage has a cleaning arm with a flow-stop plate that keeps air from flowing through the bag filters before and after cleaning. Dust from cleaned bag filters cannot be re-entrained onto adjacent bags, resulting in lower pressure drop and reduced energy costs. Combine this with Dura-Life™ “Twice the Life” bag filters as standard and this LP Baghouse is better than any other reverse air collector on the market today.
Features
- Flow-stop plate cleaning arm reduces dust re-entrainment
- Single inlet, outlet and hopper reduces ducting and hopper outlet costs
- LP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflow
- LP cleaning system requires no compressed air
- Optional live bottom hopper grinds dusts to prevent bridging in hopper
- Award winning Dura-Life “Twice the Life” bag filters
Features
| Collector Design | Standard | Optional |
|---|---|---|
| Clean-Side Bag Removal |  |
|
| Walk-In Clean Air Plenum | |
|
| 10-Gauge Carbon Steel Construction on 72LP - 252LP | |
|
| 3/16" Carbon Steel Construction on Panelized 312LP - 684LP | |
|
| 1/4" Carbon Steel Construction on Panelized 780LP - 882LP | |
|
| Heavy Duty 7 gauge plate Tubesheet | |
|
| Heavy-Duty 3/16 Gauge Plate or Greater Tubesheet on Panelized 312LP - 882LP | |
|
| Rated - 17" (431.8 mm) Water Gauge on 72LP - 252LP | |
|
| Rated - 20" (508.0 mm) Water Gauge on 312LP - 882LP | |
|
| Internal Sweep Arm Cleaning Mechanism | |
|
| Explosion-Proof Reverse Air Fan & Motor* | |
|
| Aluminum Fan Wheel | |
|
| Flanged Inlet, Outlet & Body | |
|
| Easy-Lift Lifting Ears | |
|
| Tangential Inlet on 72LP - 252LP & 684LP - 882LP | |
|
| Involute Inlet on Panelized 312LP - 594LP | |
|
| Ladders and Platform Assemblies | |
|
| Stainless Steel Construction | |
| Bags and Cages | Standard | Optional |
|---|---|---|
| Dura-Life Twice the Life Felt Snap-In Bag Filters | |
|
| Galvanized Snap-In Bag Cage | |
|
| Variety of Filter Bag Media Options | |
| Paint System | Standard | Optional |
|---|---|---|
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | |
|
| Durable Industrial Finish Exterior | |
|
| Standard Colors: Torit Blue or Storm White | |
|
| Premium Duty Finish | |
|
| Custom Colors | |
| Hopper Design | Standard | Optional |
|---|---|---|
| 60° Hoppers | |
|
| Flanged Hopper Discharge (per specification) | |
|
| Hopper Access Panel | |
|
| Coupling for High Level Indicator | |
|
| High Level Indicator | |
| Support Structure | Standard | Optional |
|---|---|---|
| 762 mm / 30 in. Clearance Leg Pack (Beneath 609.6 mm / 24 in. FT Valve) | |
|
| Custom Clearance Leg Packs | |
| Electrical Controls, Gauges, and Enclosures | Standard | Optional |
|---|---|---|
| Magnehelic** Gauge | |
|
| Photohelic** Gauge | |
|
| Photohelic Gauge (Weatherproof) | |
|
| iCue™ Connected Filtration Service | |
| Safety Features | Standard | Optional |
|---|---|---|
| Sprinkler Kit Assembly | |
|
| Explosion Vents | |
|
| Interior Light for Walk-In Plenum | |
|
| Ladder Saftey System | |
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty | |
**Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.
Resources
FAQs
Q. How Are Dura-Life Bags Different from Standard Polyester Bags?
A. Dura-Life bags are made from polyester material that is created through a hydro-entanglement process instead of a needle punch process. The hydro-entanglement process creates a more consistent and uniform filter material. The material is comparable in thickness to standard polyester, but weighs about 1/3 less. The fibers are smaller and the hydro-entanglement process creates a loftier and lighter weight fabric that filters more effectively.
